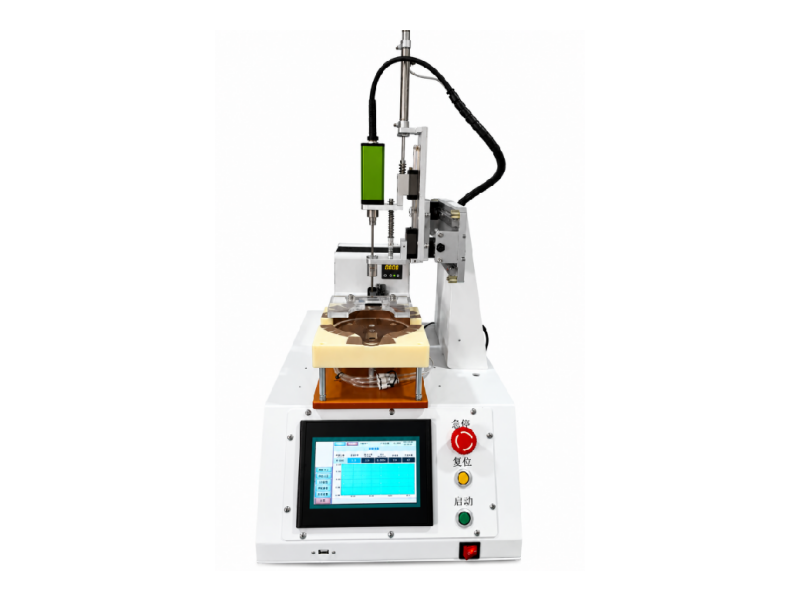

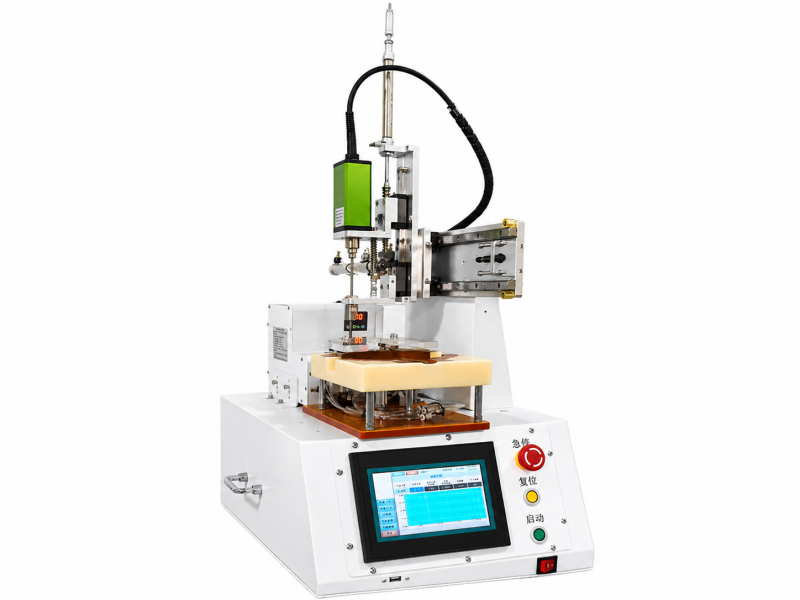

TWO AXIS AUTOMATIC SCREW LOCKING MACHINE

Main functions

  • Optional screw picking methods: vacuum suction, magnetic suction, air-blow, etc.
  • Compact size, suitable for single-screw fastening applications.
  • Rigid sheet metal frame; height of feeder is adjustable.
  • Supports servo electric screwdriver with torque adjustment via touch screen.
  • Equipped with high-performance motion control system, user-friendly programming, easy to operate.
  • With human-machine interface (HMI) touch screen, dynamically displays locking status; screwdriver speed and torque can be monitored in real time.
  • 技术参数
  • 设备用途
锁附范围 Locking range 单点(unilateral)
外形尺寸 Overall dimensions 400*750*900mm(宽长高)(Width, Length, Height)
驱动方式 Drive Type 气缸驱动;Cylinder drive
定位精度 positioning accuracy ±0.02 mm
控制系统 control system 触摸屏 + 高性能运动控制卡 Touch screen+high-performance motion control card
电批系统 Electric batch system 智能伺服电批,任意设定扭力与转速 Intelligent servo electric batch, freely set torque and speed
锁付效率 Lock payment efficiency 约 about 1.2s
程序容量 program capacity 100 组 group
设备功率 Equipment power 300W
电源 power supply 220VAC
气源 gas source 5-6KPa
整机总量 Total weight 30Kg

Suitable for mobile phones, cordless phones, calculators, navigators, speakers, cameras, learning devices, small appliances, toys, etc.
