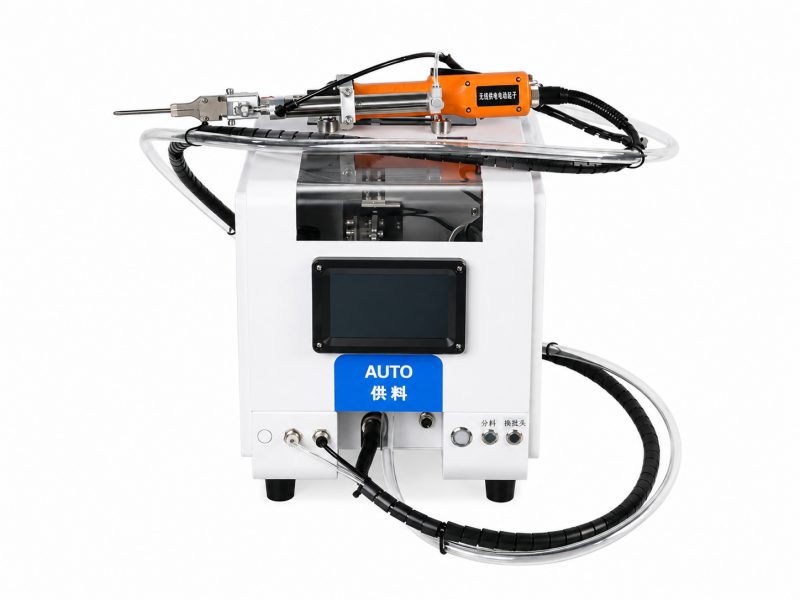

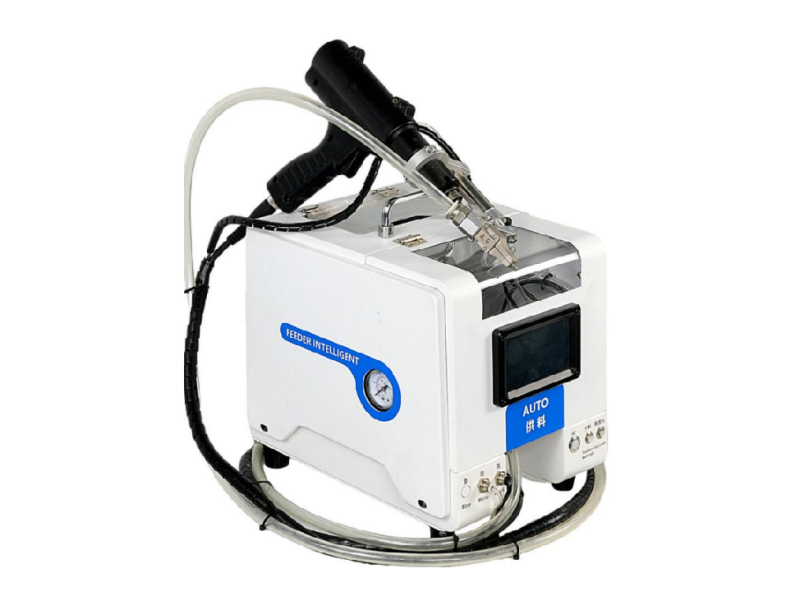

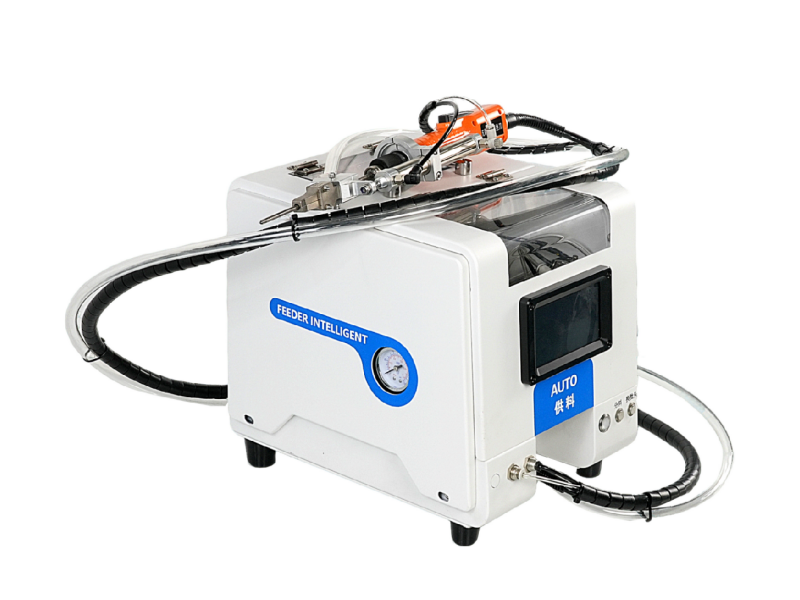

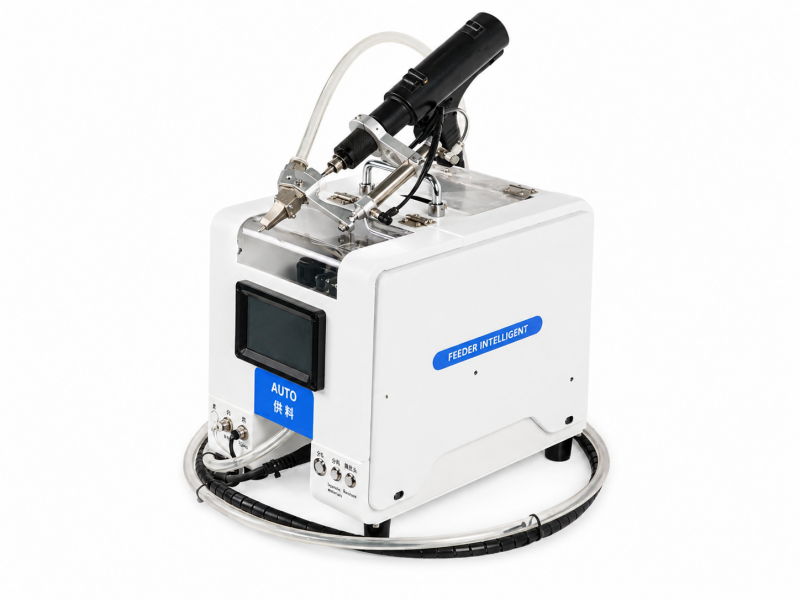

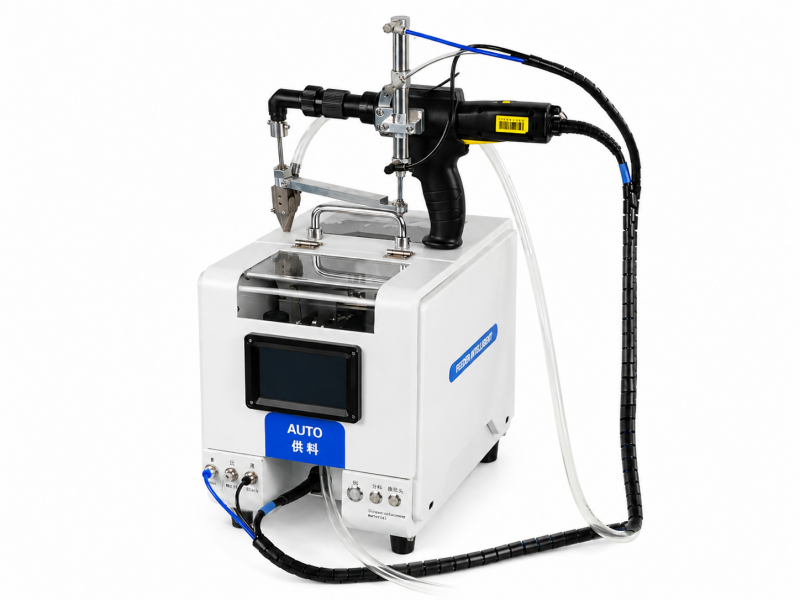

MEDIUM HANDHELD SCREW LOCKING MACHINE

Main functions

Higher efficiency, automatic feeding, adjustable torque.
Equipped with various alarm functions and counting function.
Compatible with both steel screws and stainless steel screws.
Suitable for deep holes, inclined holes, side holes, curved surfaces, and uneven surfaces.
Easy to operate, no professional personnel required for debugging.
Smooth feeding, no screw jamming, durable and reliable.

服务热线

13790686580

技术参数
设备用途

外形尺寸	Overall dimensions	310260300mm（长宽高 LWH ）
运动方式	Drive Type	气缸推拉式；Cylinder push-pull type;
控制系统	control system	触摸屏 + 控制卡 Touch screen+control card
电批系统	Electric batch system	帝阁、捷泰达、奇力速等 Emperor Pavilion, Jietaida, Qilisu, etc
锁付效率	Lock payment efficiency	约 about 1s
设备功率	Equipment power	50W
适用螺丝总长度	Total applicable screw length	≤25mm
容量	Feeder capacity	400ML
电源	power supply	220VAC
气源	gas source	5-6KPa
整机总量	Total weight	15Kg

Suitable for semi-automatic locking of M1.4~M4 screws,applied to toys, calculators, hardware parts, speakers, learning machines, small home appliances, etc.
