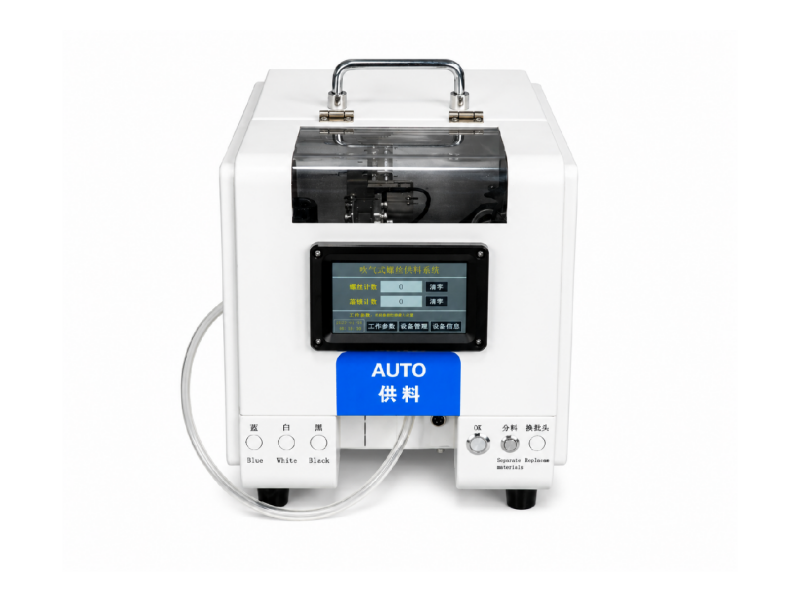

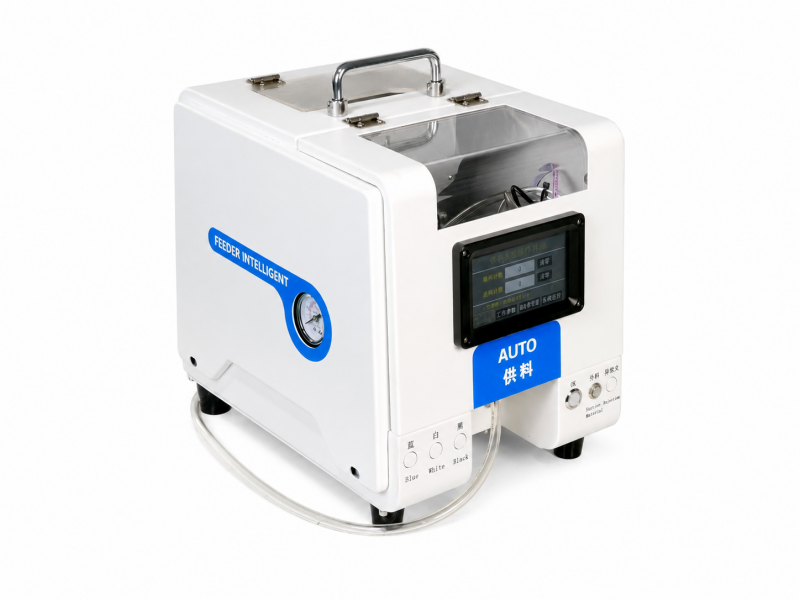

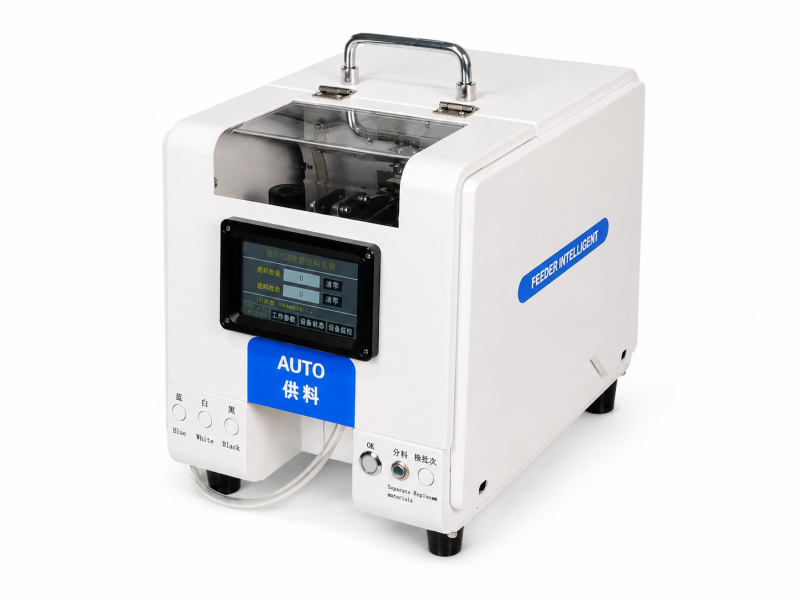

MEDIUM DRUM-TYPE AIR-BLOW FEEDER
Main functions
Higher efficiency, automatic feeding, supports 1-out-1 and 1-out-2 feeding.
Equipped with various alarm functions and counting function.
Compatible with both steel screws and stainless steel screws.
Supports ultra-long distance feeding up to 5–8 meters.
Easy to operate; no professional personnel required for debugging.
Smooth and stable discharge, no screw jamming, durable and reliable.
服务热线
13790686580
技术参数
设备用途
外形尺寸
Overall dimensions
310*
260*
300mm（长宽高 L
W
H ）
供料方式
Drive Type
滚筒供料；Drum feeding;
控制系统
control system
触摸屏 + 控制卡 Touch screen+control card
供料效率
Feeding efficiency
约 about 0.8s
设备功率
Equipment power
50W
适用螺丝总长度
Total applicable screw length
≤25mm
容量
Feeder capacity
400ML
电源
power supply
220VAC
气源
gas source
5-6KPa
整机总量
Total weight
15Kg
Applicable for air-blow feeding of M1.4–M5 screws
