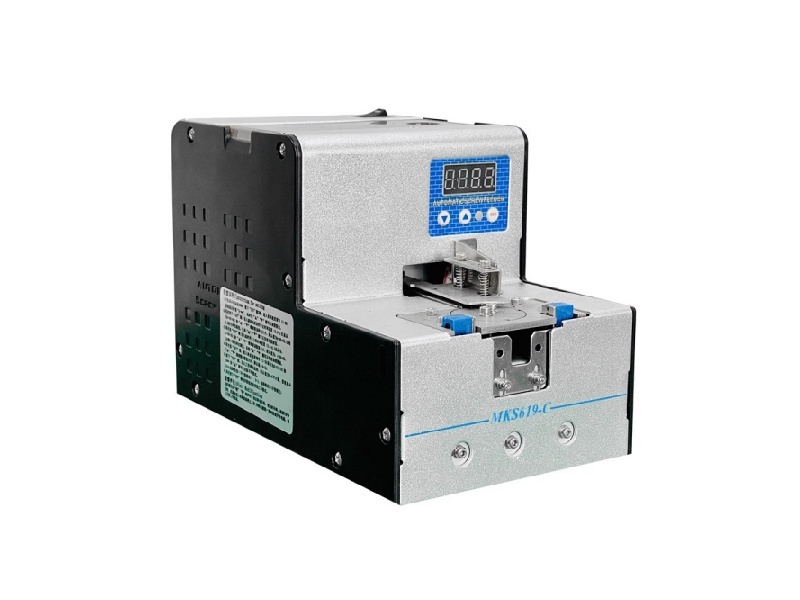

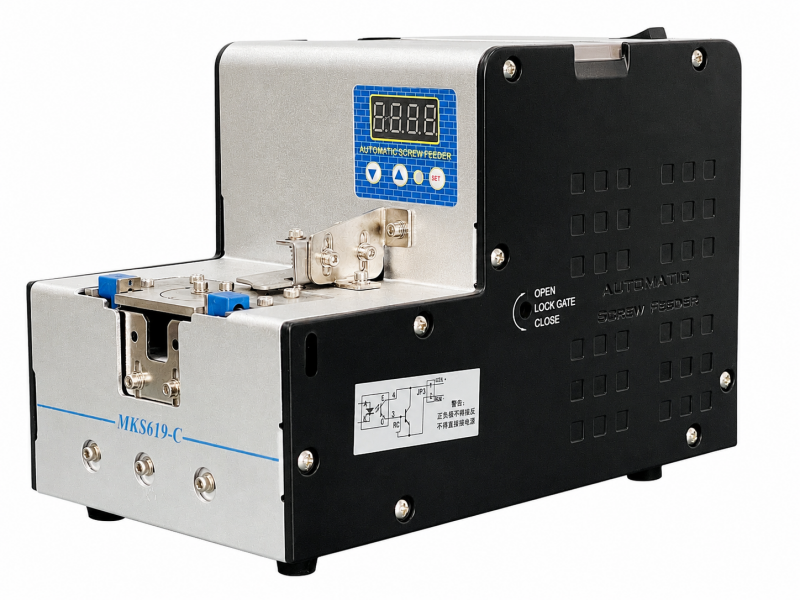

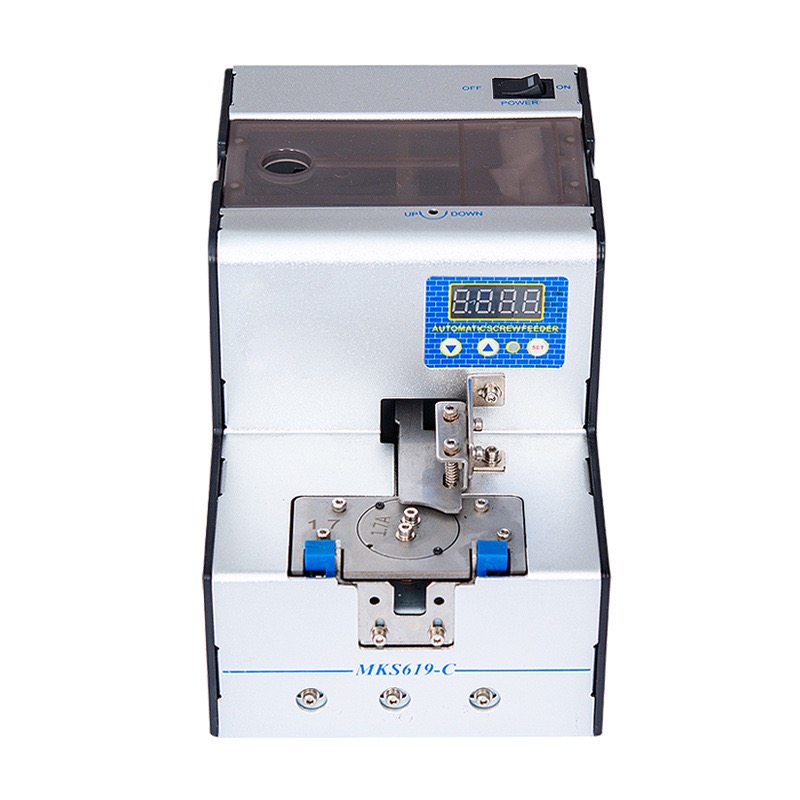

Suction-type screw feeder

Main functions

Adjustable track: Compatible with M1.0–M5.0 screws by swapping the rotary plate and guide rail.
Reliable and quiet operation: Features jam-clearing reverse rotation and error alarm functions.
Signal output for integration with automated machinery; repeatability accuracy of ±0.02 mm.

服务热线

13790686580

技术参数
设备用途

产品名称:	气吸式螺丝供料机	尺寸:	宽 202.5深 126高 149MM
适用螺丝:	M1.0-M5.0	输入电压:	AC220V
螺丝长度:	≤16mm	出料速度:	60-90PCS / 分钟
有效容量:	200mL	重量:	约 2.9kg
输出速度:	60-90PCS / 分钟	拾取点高度:	76mm

Suitable for industries such as electrical appliances, home appliances, toys, new energy, LED, and telecommunications.

Screw machine series: Automatic screw locking machine; Handheld screw locking machine; Visual automatic screw locking machine; Parts

Others Series: No-go gauge testing machine; Fully automatic braces machine
