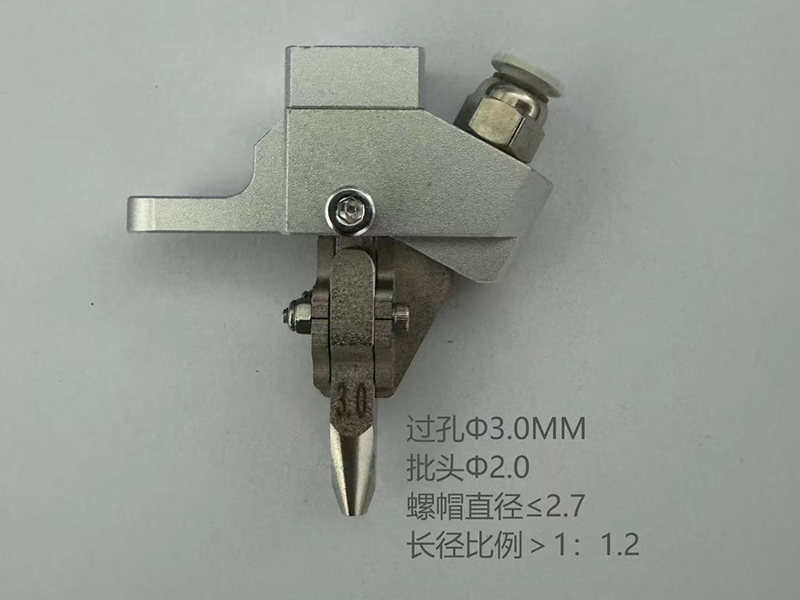

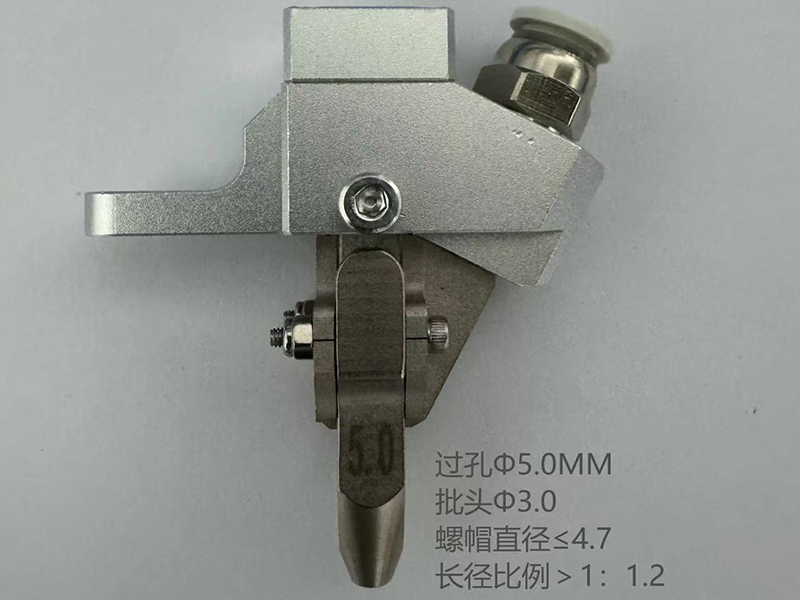

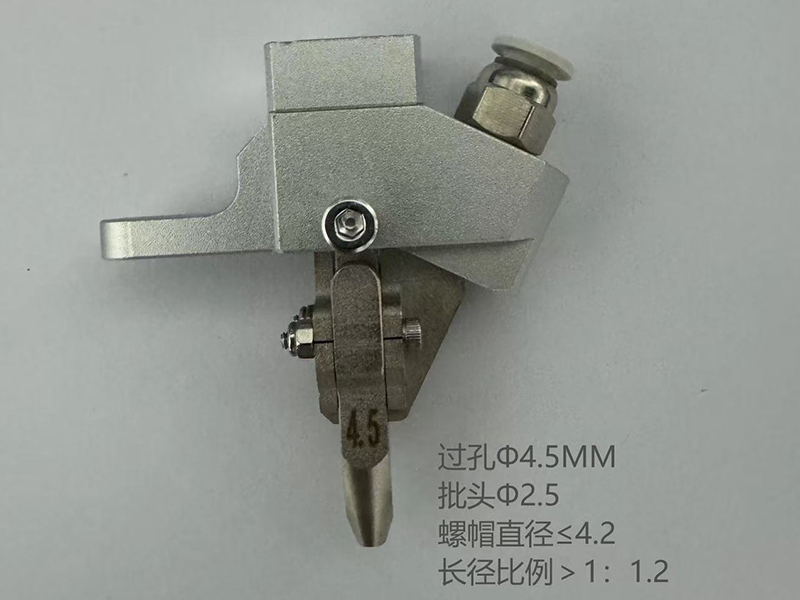

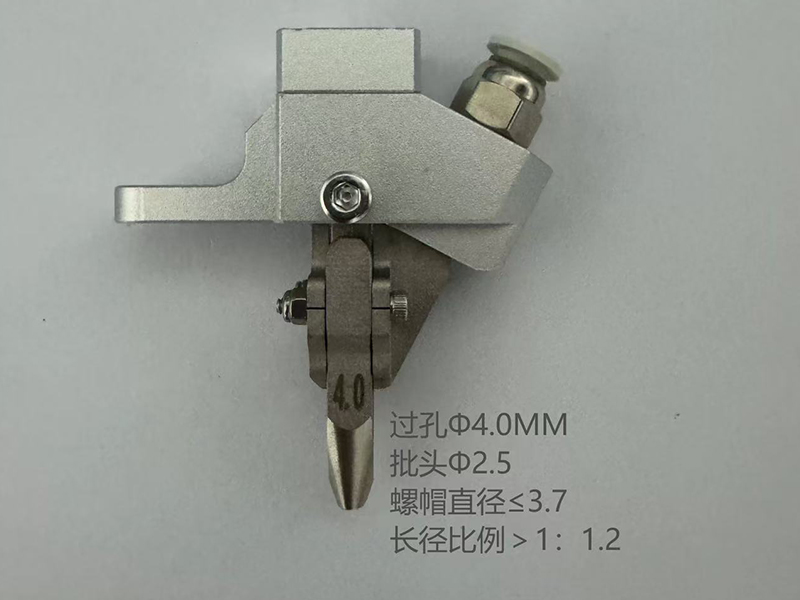

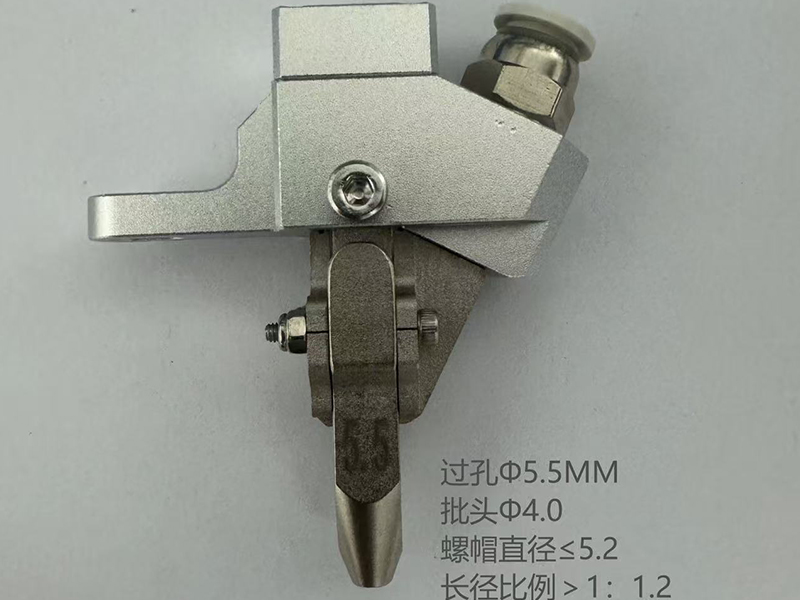

Electric screwdriver chuck

Main functions

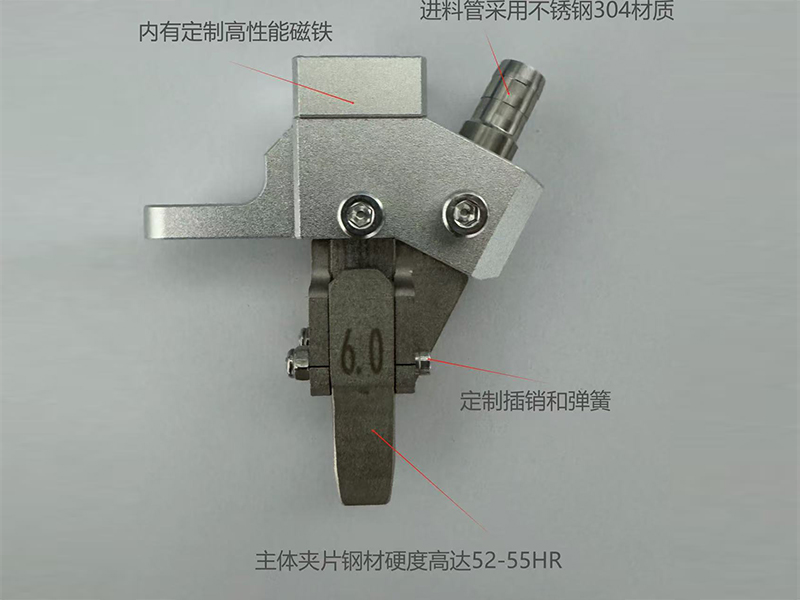

The chuck assembly is constructed from S136H material, 6061 aluminum alloy, and powerful magnets.
Manufacturing processes: CNC machining and medium-speed wire-cut EDM; heat-treated to a hardness of approximately 53–56 HRC.
Surface treatment: Anodizing and nickel plating.
If you have any questions, please provide the specific screw specifications: 1. Screw head diameter, 2. Screw shank diameter, 3. Total screw length.

服务热线

13790686580

技术参数
设备用途

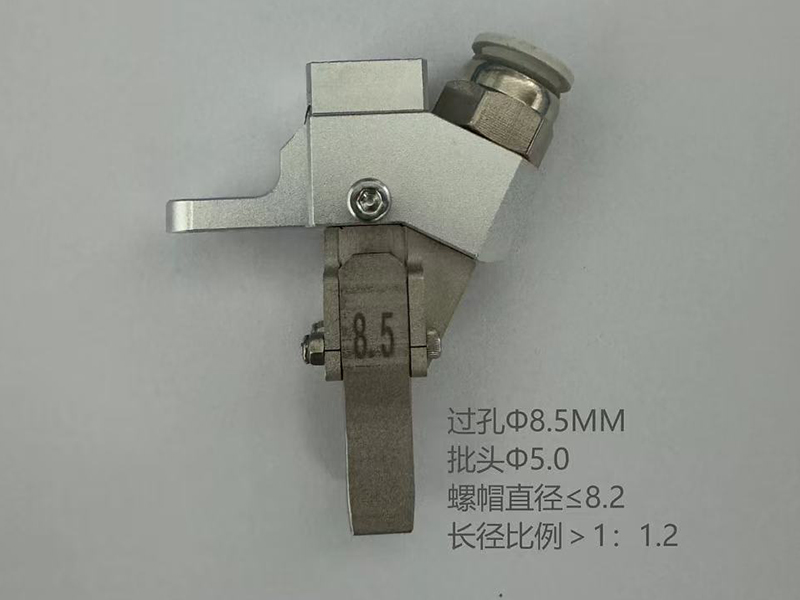

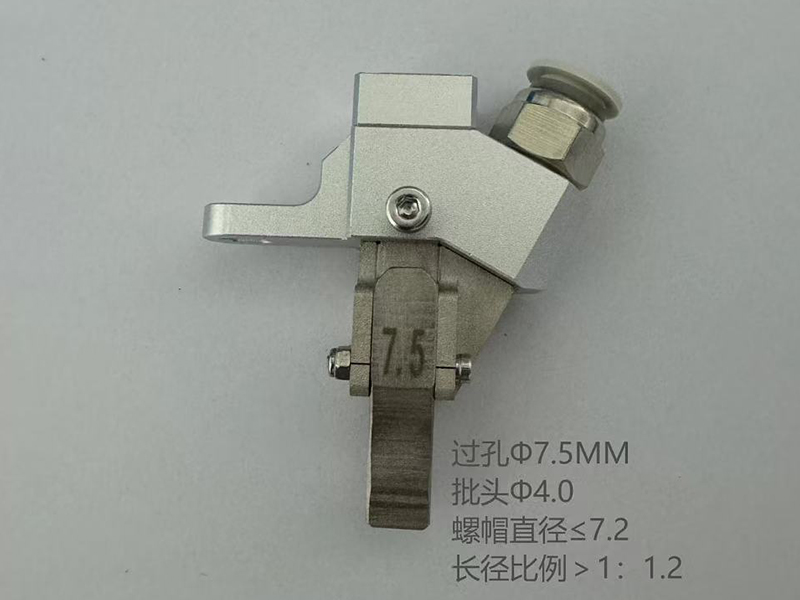

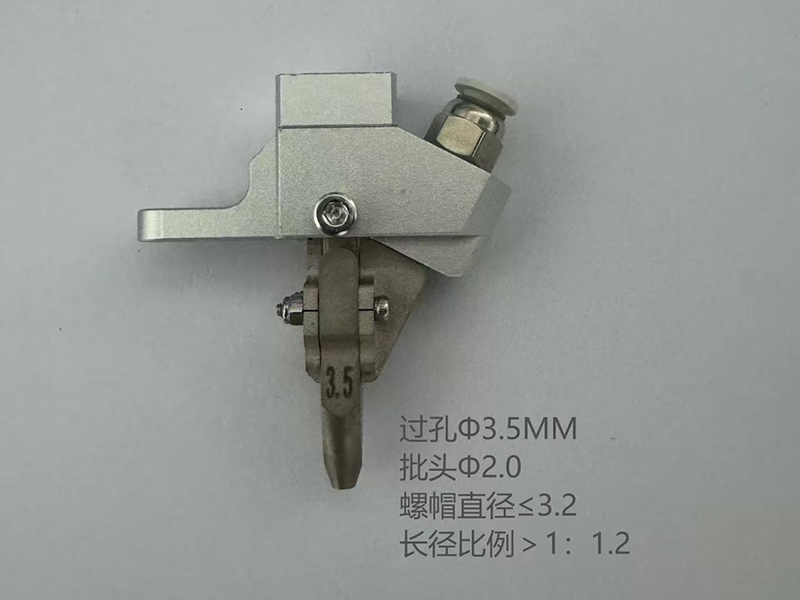

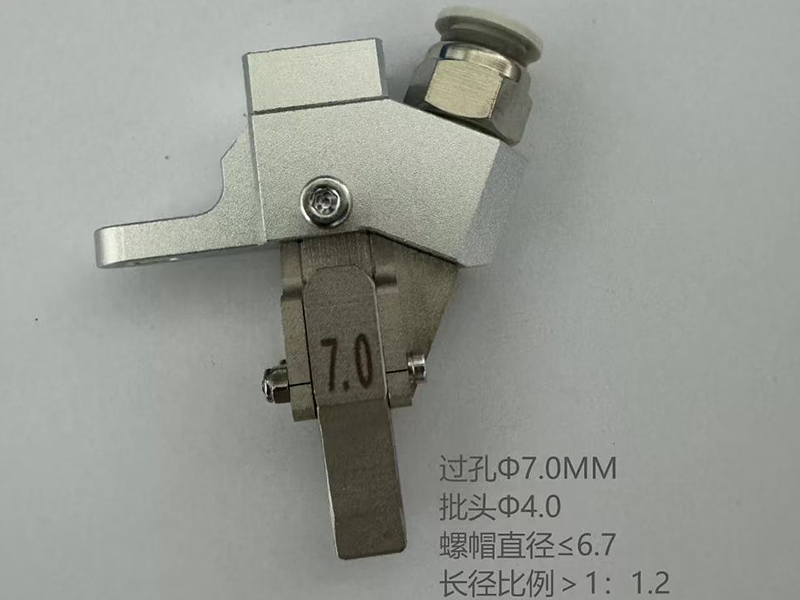

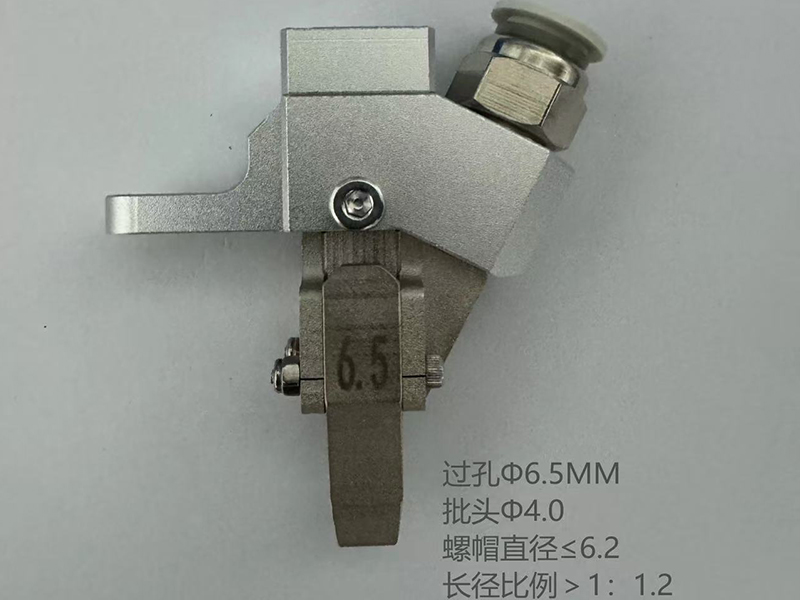

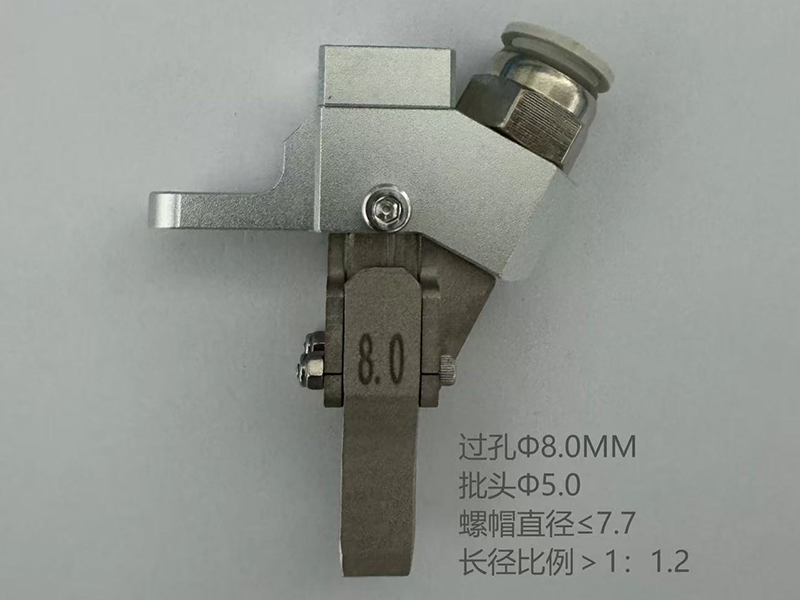

序号	夹头型号	螺杆直径	螺帽	最小长度	最大长度	批头大小	磁铁
1	1835	1.5-1.8	2.7-3.2	4.5	12	D2	D15*2-18
2	2040	1.7-2.0	2.9-3.7	5	12	D2.5	D15*2.5-18
3	2345	2.0-2.3	3.7-4.2	6	13	D2.5/D3	D15*3-18
4	2550	2.3-2.6	3.9-4.7	6.5	13	D3	D15*3-18
5	3055	2.8-3.0	4.7-5.2	7	15	D3/D4	D15*4-18
6	3060	2.8-3.0	4.9-5.7	7.5	15	D4	D15*4-18
7	3065	2.8-3.0	5.6-6.2	8	16	D4	D15*4-18
8	3070	2.8-3.0	6.3-6.7	8.5	16	D4	D15*4-18
9	3575	3.3-3.5	6.2-7.2	9	16	D4	D15*4-18
10	4080	3.7-4.0	6.8-7.7	9.7	17	D5	D15*5-18
11	4085	3.7-4.0	7.7-8.2	10.5	17	D5	D15*5-18
12	4090	3.7-4.0	8.3-8.7	11.2	18	D5	D15*5-18
13	4095	3.7-4.0	8.8-9.2	12	18	D5	D15*5-18

Any item with a screw-like shape can be used, regardless of material—such as plastic, wood, etc.
