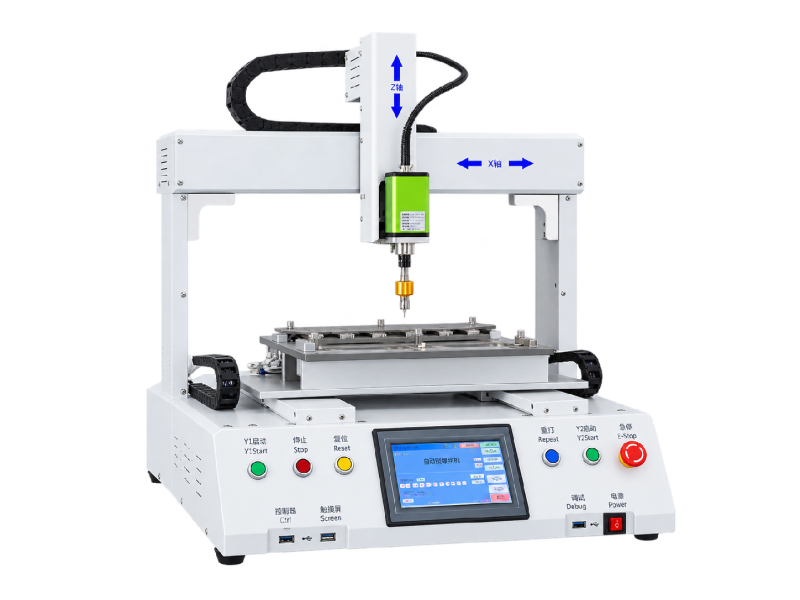

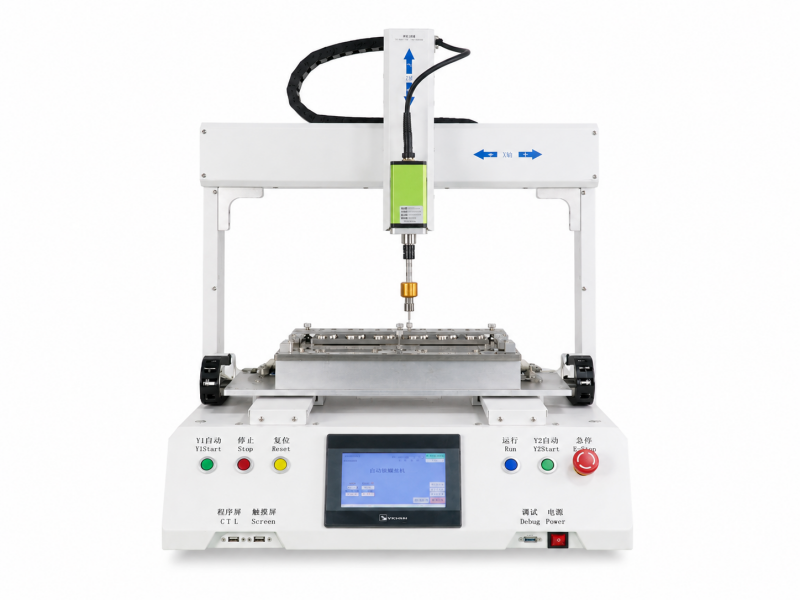

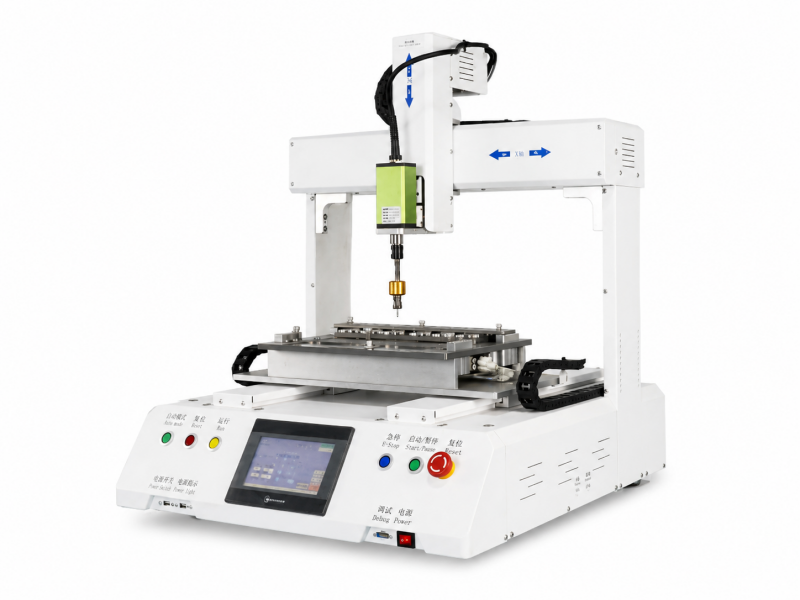

GENERAL INSPECTION MACHINE

Main functions

Equipped with go gauge head or no-go gauge head.
Supports thread hole detection for M2~M16 screws.
Allows quick change of go gauge head.
Rigid sheet metal frame; feeder height is adjustable, compatible with products of varying heights.
Closed-loop stepper motor with high precision, position compensation, no step loss, and low vibration.
Equipped with high-performance motion control system, user-friendly and easy to program.
With HMI touch screen, dynamically displays detection status; screwdriver speed and torque can be monitored in real time.

检测范围	Detection range	250X250, 可定制（250×250, customizable）
外形尺寸	Overall dimensions	75014001800mm, 可定制 customizable（宽长高）(Width, Length, Height)
驱动方式	Drive Type	闭环精密步进电机；Closed loop precision stepper motor
定位精度	positioning accuracy	±0.02 mm
控制系统	control system	触摸屏 + 高性能运动控制卡 Touch screen+high-performance motion control card
电批系统	Electric batch system	智能伺服电批，任意设定扭力与转速 Intelligent servo electric batch, freely set torque and speed
检测效率	Detection efficiency	约 about 5s
程序容量	program capacity	100 组 group
设备功率	Equipment power	1500W
电源	power supply	220VAC
气源	gas source	5-6KPa
整机总量	Total weight	80Kg

Suitable for locking screws, applied to general platforms in industries such as 3C electronics and home appliances
